2025C Version Perkins EST Interface Diagnostic Tool (Real Perkins EST CA3 Interface)

2025C Version Perkins EST Interface Diagnostic tool (Real Perkins EST CA3 Interface)

Real Perkins Interface EST NO WIFI and Bluetooth

Attention:
1.This real Perkins Communication Adapter CA3 Pro,but others only use cat et diagnostic tool to replace it. and cat et3 can not read many data of Perkins engine
2.If you select option 2.Perkins EST Interface with V2025A software：
EST 2025C only can install one PC.We can install for you by Team viewer
Software download link : https://mega.nz/file/mDoH0RgA#vzaTg7MbKMd77FKQ0UStQMiHz5mzj4TtdEPq_raVigs

Highlights:
1.Firmware Version : Adapter III , not  Adapter II

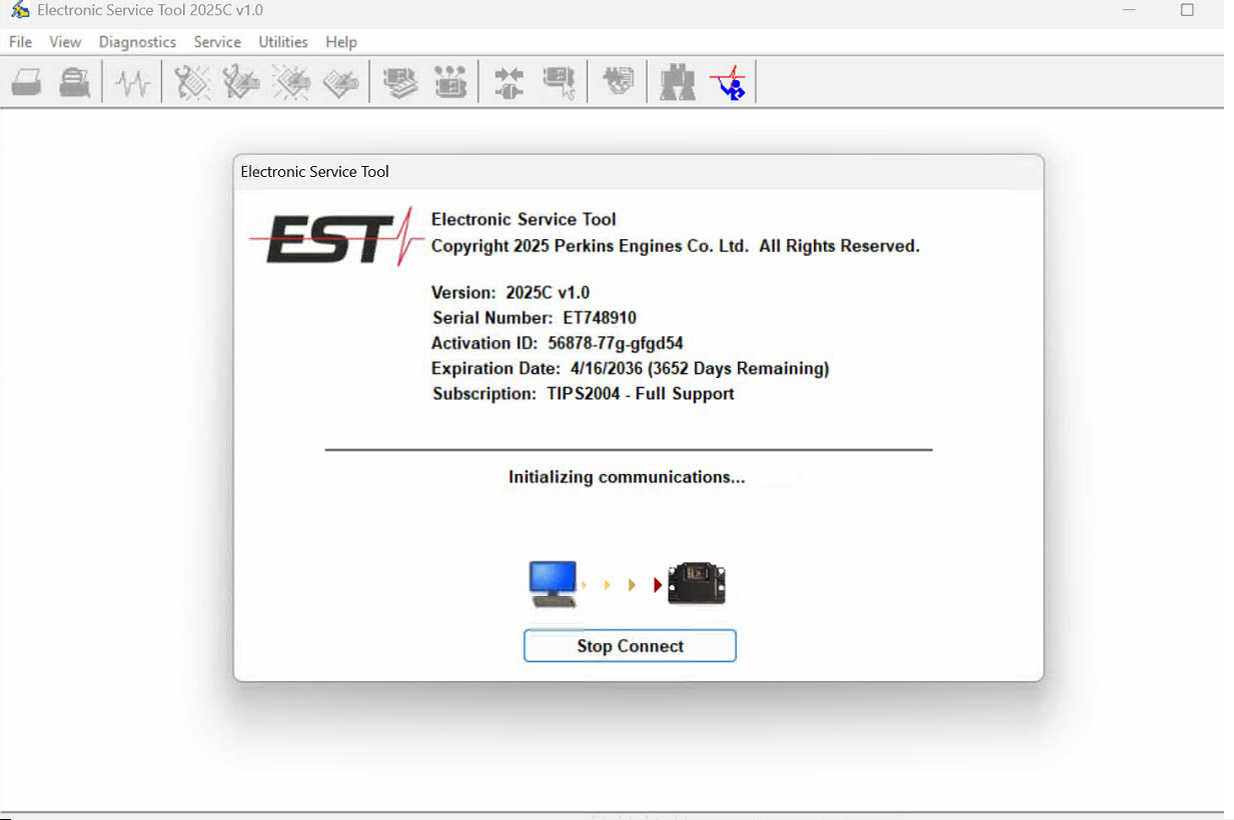

Latest Version: EST 2025C software
2.With Fast USB communication
3.Operate System: Windows7 and win10
4.Compatible Vehicle: For Trucks, Excavators, Air Compressors, Ships, Drilling Rigs
5.Support Multi-Languages: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish


Perkins features:
EST is comprised of a hardware and software PERKINS EST Diagnostic Adapter . EST is comprised of a hardware and software EST is comprised of a hardware and software interface kit, which a user can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Powerwizard control panels. This communication is established via a J1939 data link. All in all, the EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.

Perkins EST Function:
Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.

Why should an FG Wilson dealer invest in the Electronic Service Tool?
It provides the technician with an essential tool by facilitating the troubleshooting of electronic engines. As a matter of opinion, troubleshooting an electronic engine without EST is like troubleshooting an electrical panel without a multimeter Alex Cabrices FGW Latin America & Caribbean Service Advisor . Essential in replacing an ECM on a Perkins 2300/2800 series engine. A blank ECM can only be configured using EST. Essential in replacing or retrofitting an FG Wilson Powerwizard control panel module - the new standard in FG Wilson control systems. A blank module can only be configured using EST (installing the base flash file into a blank Powerwizard module). Enables the dealer to upload, download and save customer configuration files. Allows bypassing Powerwizard level three passwords. Enables dealers to update the software versions of customers Powerwizard control panels, as required. New software releases can enhance the control panels functionality. Enables dealers to install additional Powerwizard language files, as required.

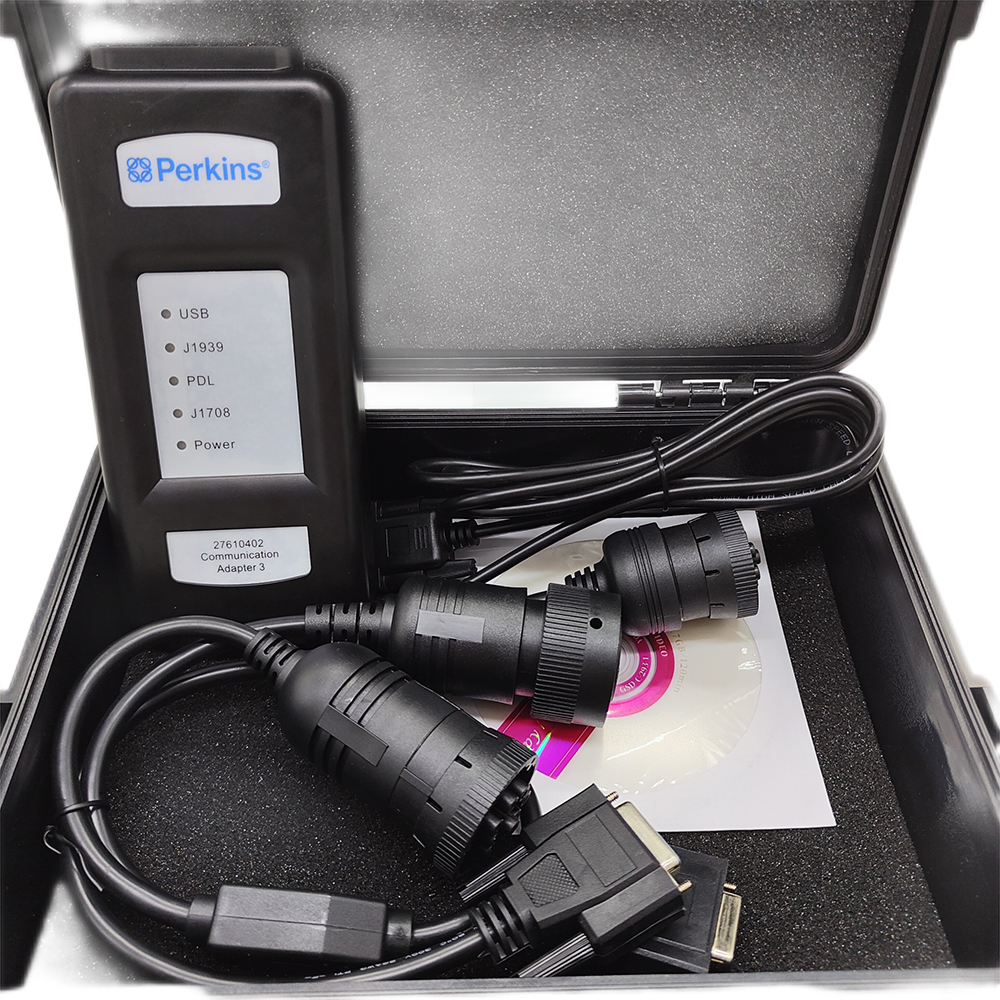

Option 1:

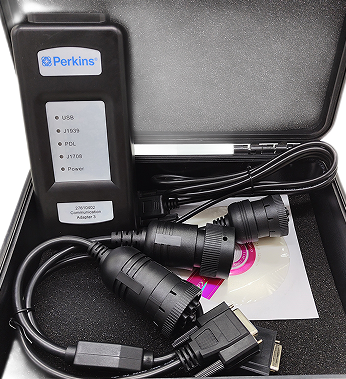

Package List:
1.Real Perkins EST interface
2.USB Cable(From device to your computer)
3.14PIN + 9PIN Cable
4.6PIN Cable(for old truck)
5.Perkins EST 2015A software(CD）
6.Plastic Box

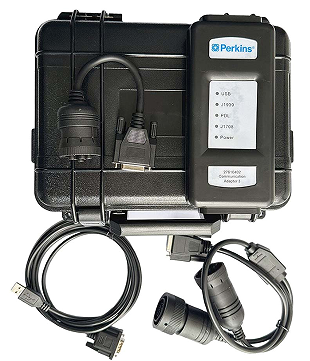

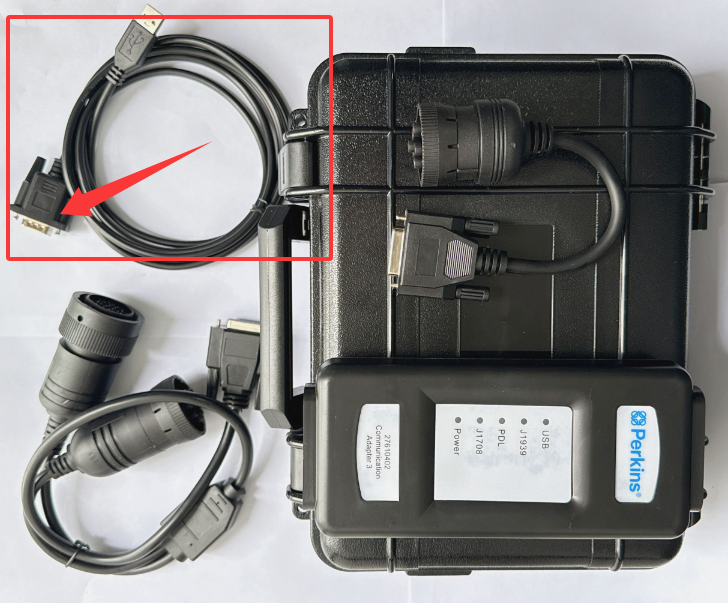

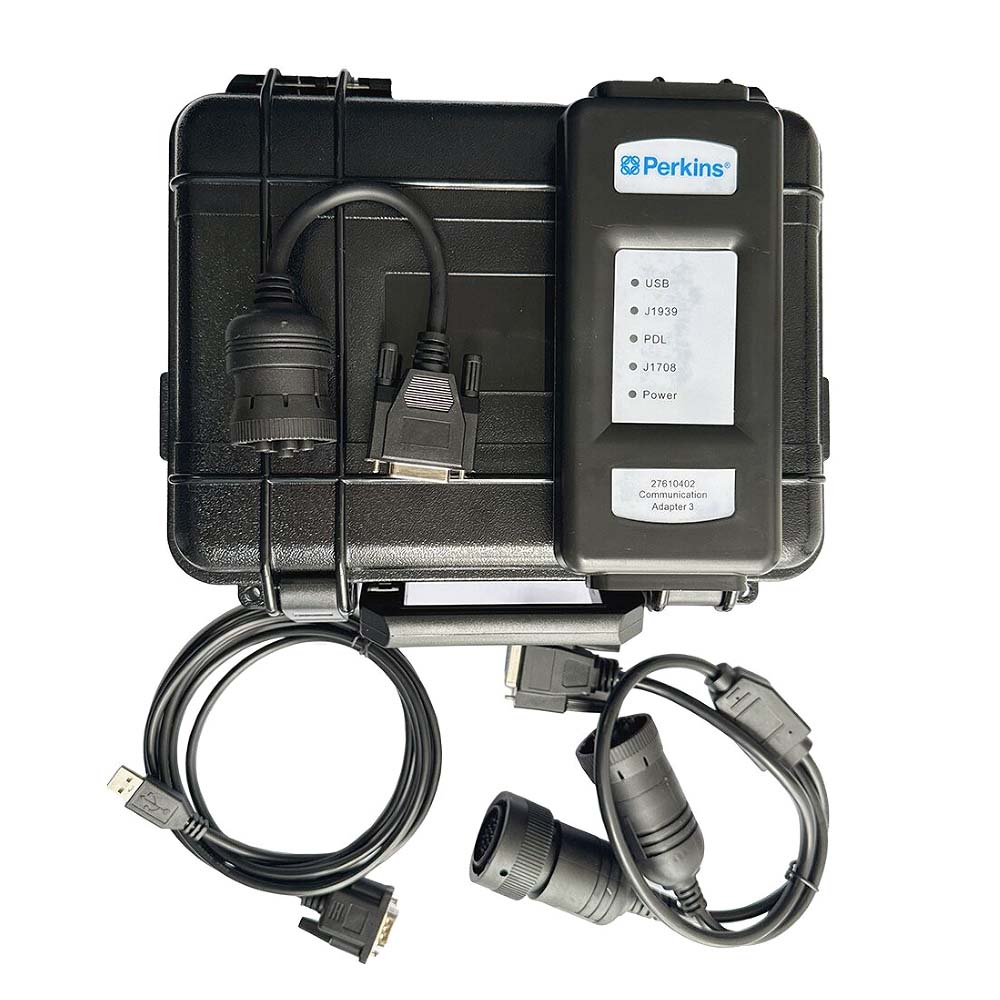

Option 2:
Package List:
1.Real Perkins EST interface
2.USB Cable(From device to your computer)
3.14PIN + 9PIN Cable
4.6PIN Cable(for old truck)
5.Perkins EST 2025C software(installing the software on one laptop remotely free）
6.Plastic Box

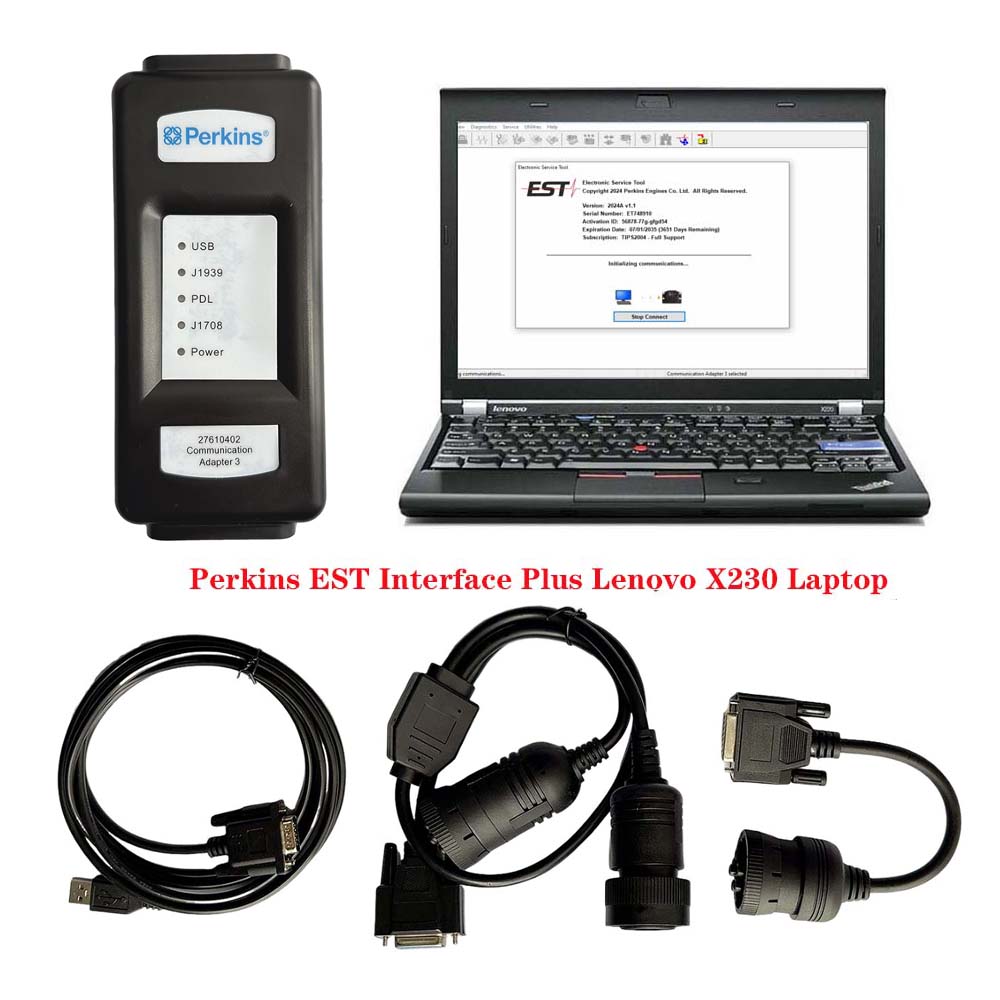

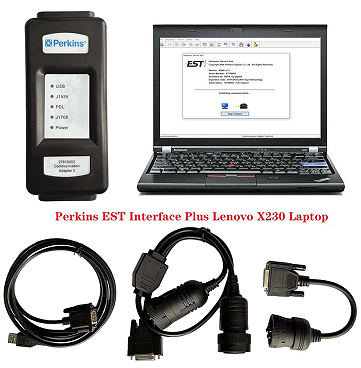

Option 3 :
Package List:
1.Perkins EST interface
2.9 pin cable
3.16 pin cable
4.usb cable
5.Plastic Box
6.1pc x Second-hand Lenovo X230 Laptop With 2025C Software (The software has been installed and activated）

Second Hand Lenovo X230 Laptop:
Brand:Lenovo
Condition:Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-3320M CPU
Memory:8GB
Processor Speed:2.6GHz

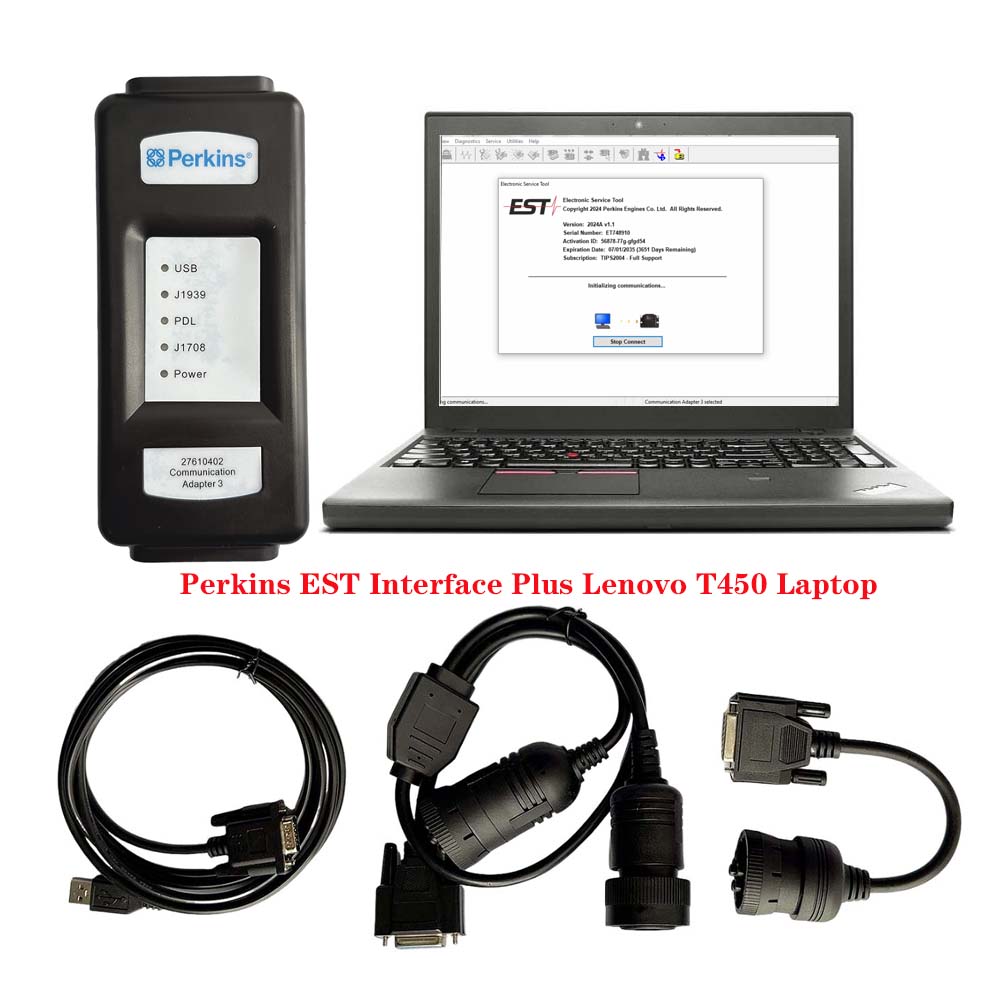

Option 4 :
Package
1.Perkins EST interface
2.9 pin cable
3.16 pin cable
4.usb cable
5.Plastic Box

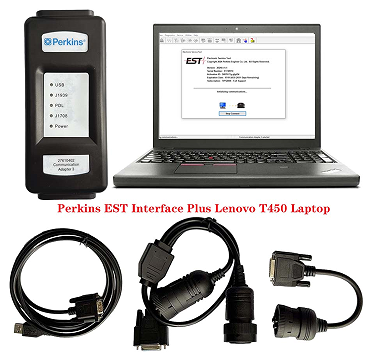

6.1pc x Second-hand Lenovo T450 Laptop With 2025C Software(The software has been installed and activated)

Second Hand Laptop Lenovo T450 Laptop:
Brand: Lenovo
Condition: Used
Type: Laptop/Notebook
Screen Size: 14
Processor Type: Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB

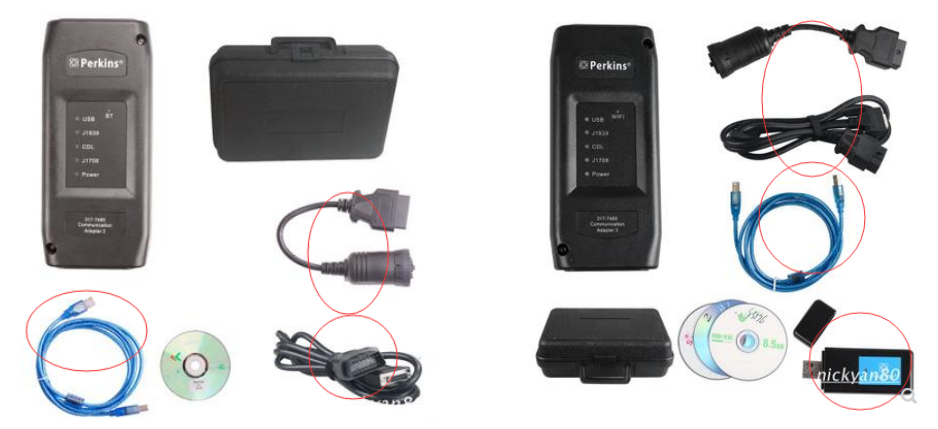

Original Factory Perkins EST interface Compare With OEM Perkins EST interface
1.Original Factory Perkins EST interface can use once pluged, no need install the USB drive, the software can automatic realize it for ET3 Adapter, and the machine can automatic weld the high quality Circuit board, quality will be more reliable.
2.The OEM Perkins EST interface need use USB Drive to install, and need choose the COM Port

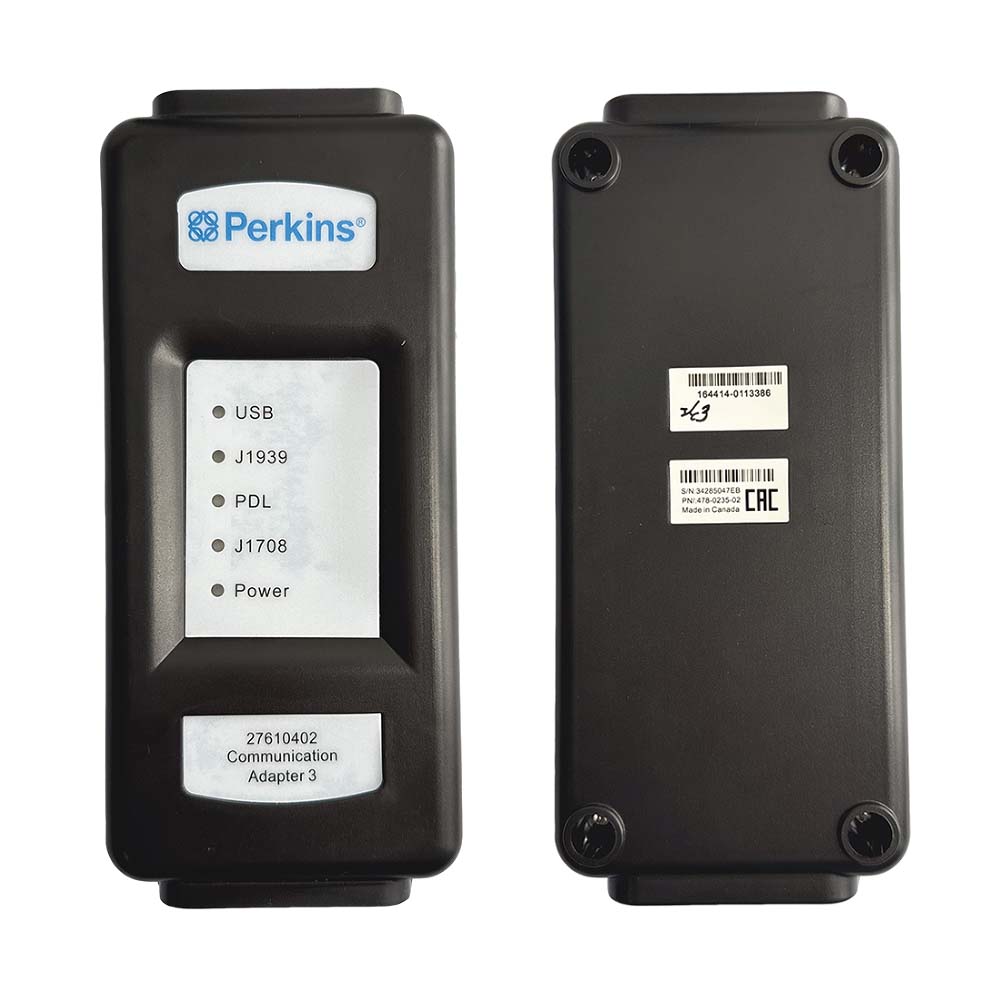

Real Perkins EST Interface

Fake Perkins EST Interface
