Heavy Duty Truck Xtuner T1 HD Diagnostic Tool Support Special Functions with WIFI

Heavy Duty Truck Xtuner T1 HD Diagnostic Tool Support Special Functions with WIFI

XTUNER T1 Heavy Duty Trucks Auto Intelligent Diagnostic Tool is new professional Diesel scan tool released by TDINLTEL Tech. Xtuner T1 is with professional design, the hardware features in stability and anti-interference. The built-in over-voltage protection module is able to protect scanner and vehicle against accidental damage during checking.XTUNER T1 support both USB and WIFI connection for the VCI, provide you great convenient in diagnosing Heavy duty trucks. Free update online.

Top 10 Reasons to Get XTUNER T1 Heavy Duty Trucks Auto Intelligent Diagnostic Tool:
1.Extensive vehicle coverage for heavy-duty trucks.
2.Complete function including DTC, DTC freeze Info, Live data, Actuation test and Special function.
3.Support standard protocol J1939, J1708 and J1587.
4.Communication: USB or WIFI connection for the VCI.
5.XTUNER T1 Update: New software update on official website www.tdintel.com.
6.Supply OBDII and other 10 connector.
7.With brand-new design, the hardware features in stability and anti-interference.
8.The built-in overvoltage protection module is able to protect scanner and vehicle against accidental damage during checking.
9.Work stably and smoothly in high and low temperature environment..
10.Operation System:  Windows XP, Windows 7, Windows 8, Windows 10, which allows for more stable performance, better compatibility and expandability.

Language: English and Portuguese (will add more languages in the future)

XTUNER T1 update information: (Jan 22nd, 2018)
ISUZU    V12.8
1.Add 460 Active Tests and 60 Special Functions for all the series.

XTUNER T1 update information：
HINO_12.7
1.Add auto scan

UD_V12.3
1.Update the software(Basic Function).

Xtuner T1 upgrade news!
Add new brand: Ford!
Update(T1 Version V8.5)
1,The First release .
2,Vehicle Covered up to 2017

XTUNER T1 update information:
MACK V12.4 EN
1. Improve the communication layer for J1708 protocol systems.

VOLVO V12.3 EN
1. Improve the communication layer for J1708 protocol systems.

RENAULT V12.2 EN
1. Improve the communication layer for J1708 protocol systems.
2. Add 35 new modules.
3. Add system scanning and DTC Freeze.

ISUZU    V12.4 EN
1、Add Euro 5,Euro 4,Euro 3,Euro 2 Series.
2、Add ISUZU Actuations.

XTUNER T1 Software Update Information:
MACK V12.2 EN :
1、Add 44 new modules.
2、Add system scanning and DTC Freeze.

XTUNER T1 update information:
ISUZU EN V12.2
Update the software(Basic Function) to support vehicle to 2017.

DIESEL OBD EN V13.2
1. Improve the read DTC and clear DTC function.
2. Improve the communication for J1939 systems.

HINO EN V12.5
Add Actuation test function for all systems

TOYOTA V12.2
Update the diagnostic database for all models of North America, Europe, Asia, Japan, other support to 2016.

T1 UPDATE!!! V8.3 to V8.4.
1. Support English,German,French,Korean,Polish,Spanish.
2. Improve the communication layer.
3. Improve the user interface.

T1 Update!
MAN V12.1->12.2 !!!
1.Add Divided by the Vehicle->TG-X System:Wabco ESAC,PTM,ASTRONIC ZF,Air-conditioning/Auxiliary air-conditionong/Heating,Instrumentation Stoneridge Electronics,CBR II Wabco,Universal mobile phone preparation(UHV)FWD,Door module TRW,Multi Media System.
2.Add Divided by the System:Multi Media System.

XTUNER T1 DIESEL OBD V13.1 Update
1. Add data groups for data list function.
2. Improve the communication for J1939 systems.

XTUNER - T1 DIESEL OBD function updated!
1. Add system information function.
2. Add I/M readiness data function.
3. Update the database support to 2017.

XTUNER-T1 UI Upgraded!!!
1. Improve the communication layer.
2. Improve the print report.
3. Fix the bug of the setting function.

XTUNER T1 Function List:
Read ECU Info, Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations, Read freeze frame data, Read/Write VIN, Basic Reset, Control unit adaptations, Air bleeding, Level calibration, Oil change, Idle speed learning, Idle speed Adjustment, Camshaft timing control learning, Broken cylinder test, Dpr Manual Forced Regeneration, Injector Codes, etc.

XTUNER T1 Special Functions:
DPF Reset、Nozzle Or Injector、Fuel Pump、Exhaust Pressure Adjustment、EGR、ECM、Vehicle Speed CONTROL、Cylinder、VIN、Write Engine Serial Number、Turbo Control

XTUNER T1 Hardware Environment:
Windows laptop, PC or PAD
CPU speed: more than 1.0G Hz
Memory: more than 1GB
Disk: more than 32 GB
Communication port: Wi-Fi or USB
XTUNER T1 Warranty: One Year

XTUNER-T1 software is free updating within 1 year from the date of product activation.

XTUNER System Coverage:
ABS(anti-lock brake system), After treatment system, Airbag, Airconditioning system, ATA Anti-theft alarm system, ATA(Auxiliary heating system air-to-air), AUS(Audio system), Behr independent air-conditioning system, BMS(Brake Management System), Body control system, Bosch DENOX AdBlue System, Break control system, BWS(Preparation system), CCS(Climate control system), CLS/ATA central locking system with anti-theft alarm, Comfort/assistance/safety systems, Compressed Air Reserve system, CSS(Collision safety system), CTS(Clock and Time System), EBS(Brake System), EBS(Electronically Controlled Brake System), Electrohydraulic steering system(EHLA), EMS(Engine Management System), Engine management system, Engine System, FLA Flame starting system, GMS(Gearbox Control System), Instrumentation System, Lane departure alarm system, LAS(Lock and alarm system), LGS(Lane Guard System), MAN Marine Diagnostic System(MMDS), Meritor Wabco Brake System, MTS Modular door control system, RAS-EC1 steering system, Security System, SRS Supplemental restraint system, Suspension System, Torque converter and clutch system, TPM(Tires pressure Monitoring System), Transport Information System, Vehicle control system, Vehicle elctrical system power converter, VIS(Visibility System), VRDU Driver assistance system, WS Maintenance System, WTA(Auxiliary heating system water-to-air), ZVA Central locking system, etc.

XTUNER T1 Vehicle Coverage:
ALLISON, ASTRA, BENZ, BREMACH, DAF, DETROIT, ERF, FOTON, FREIGHTLINER, FUSO, HINO, HYUNDAI, INTERNATIONAL, ISUZU, IVECO, KENWORTH, KIA, MACK, MAN, MaxxForce, NAVISTAR, RENAULT, SCANIA, TOYOTA, UD, VOLVO, WABCO, ect.

Electronic Control System: BENDIX, CUMMINS

Standard OBD: Diesel OBD

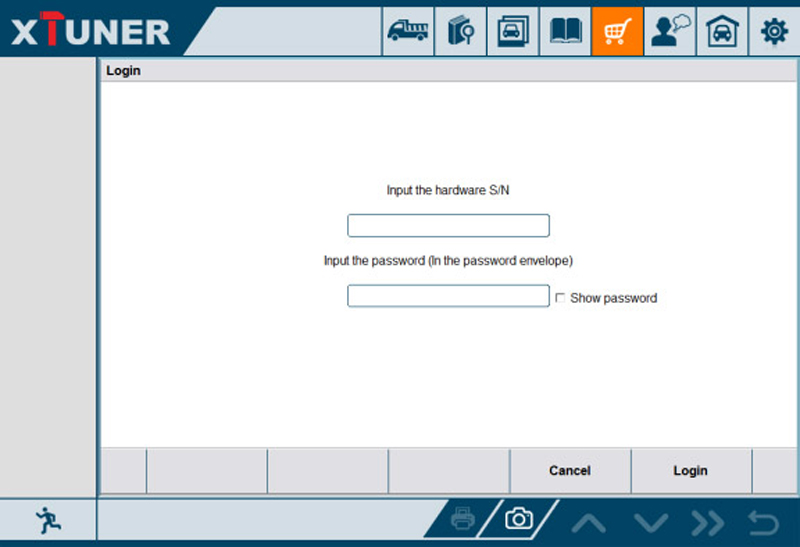

XTUNER T1 Software Display:

Package List:
1PC x XTUNER T1 VCI
1PC x Main Test Cable with OBDII connector
1PC x BENS-14 Connector
1PC x CAT-9 Connector
1PC x DENSO-12 Connector
1PC x DIESEL-6 Connector
1PC x DIESEL-9 Connector
1PC x ISUZU-3 Connector
1PC x ISUZU-20 Connector
1PC x IVECO-30 Connector
1PC x OBD-16 Connector
1PC x VOLVO-8 Connector
1PC x Universal Cable
1PC x Battery Cable
1PC x Cigar Lighter Cable
1PC x USB Cable
1PC x Quick Start Guide
1PC x Password Envelope
