ISUZU TRUCK DIAGNOSTIC KIT ISUZU Diagnostic Tool With ISUZU IDSS G-IDSS and E-IDSS V2025 Software
Save 5% OFF - Code: 5DFOX
Product Description
ISUZU TRUCK DIAGNOSTIC KIT ISUZU Diagnostic Tool With ISUZU IDSS G-IDSS and E-IDSS V2025 Software
Attention :
1.If you choose option 1: With V2019 G-IDSS and E-IDSS Softwae.you should install software yourself , G-IDSS and E-IDSS software can’t install on one laptop.
2.If you choose option 2/3/4/5: Please contact us installing the software which you selected by team viewer remotely in time
3.If you choose option 6/7: Panasonic CF53 Laptop With Latest G-IDSS and E-IDSS Softwae. You can use it directly when you get the package
NOTE:
G-IDSS (Global) / US-IDSS (only North America) for Commercial Vehicles , like truck
E-IDSS only for Engineering equipment, like Excavator, generator
The IDss supports lsuzu manufactured product models 1996-2025 year:
Stripped Chassis w/3.0L Diesel (4JJ1);
N-Series w/3.0L Diesel (4JJ1);
N-Series w/5.2L Diesel (4HK1);
N-Series w/6.0L Gas;
Nw Series w/5.2L Diesel (4HK1);
Nw Series w/6.0L Gas;
FIT Series w/7.8L Diesel (6HK1);
H/C Series w/7.8L Diesel (6HK1);
c-series w/7.8L Diesel (6HK1);
Nw series w/4.8L Diesel (4HE1);
FRRWT5500 w/7.8L Diesel (6HK1);
Nw series w/5.7L(CAL)Gas;
NW Series w/5.7L(FED)Gas.
G-IDSS introduction:
Version：2025
Languages: English, Spanish, Chinese, German, French, Japanese, Thai, Turkish, Ukrainian, Greek, Hungarian, Italian, Indonesian, Vietnamese
OS: Win7/Win10 x64&x86,
NOTE: Supports ALL REGION trucks except North America(Because some ISUZU Trucks in North America use Cummins engines), It is complete kit, ready to use.

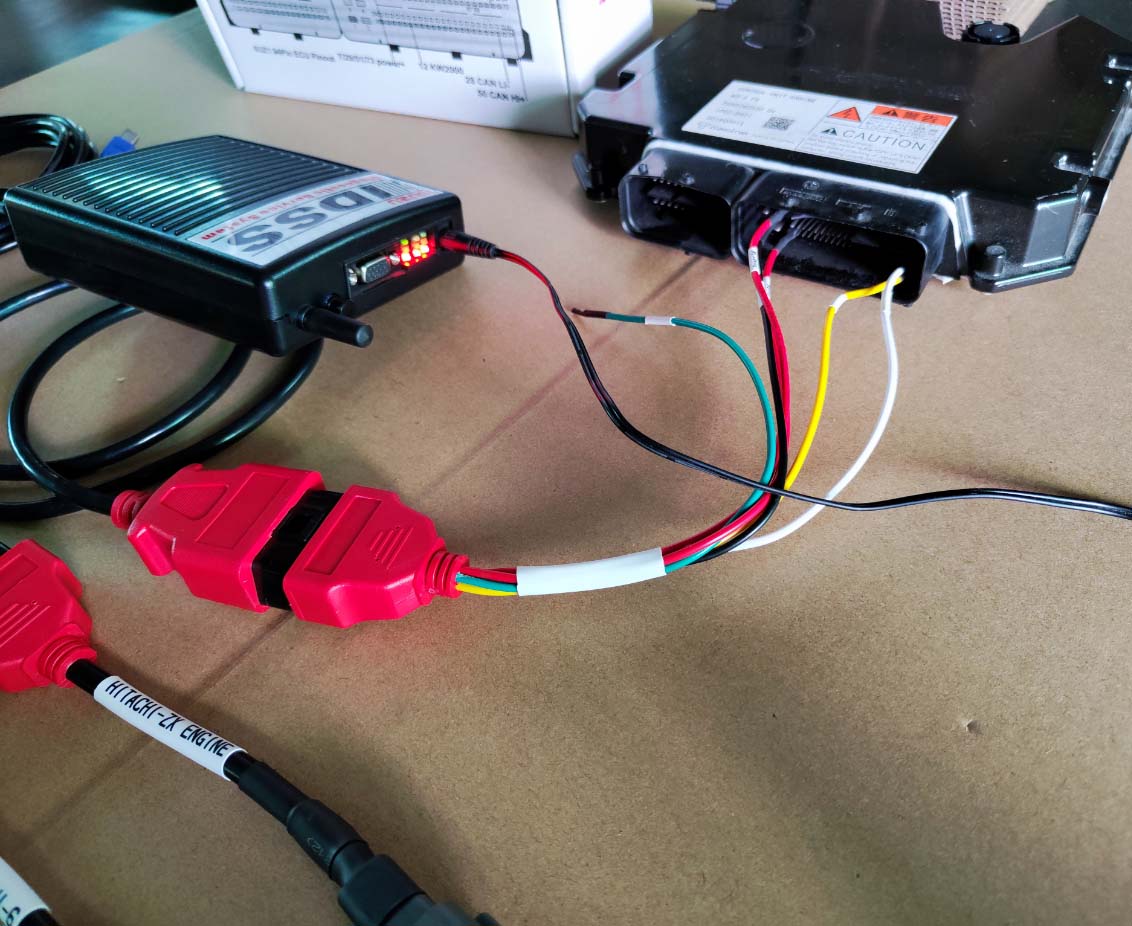

G-IDSS USB-Link works very well, but there is no ECU/ECM plug connector, soit can't write data into ECM/ECU. Other functions can be perfectly diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN,diesel pump Functions,such as adjustment functions G-idss is software USB-LINK Special Edition is hardware.It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM
SERVICE INFORMATION,NOT AVAILABLE ON ALL MODELS ....!!!
Isuzu G-IDSS Export 2025- Isuzu Diagnostic Service System
description of the catalogue:
G-IDSS exclusive software for Isuzu vehicles. With each new release of the G-IDSS program, additional vehicle engine configurations and controller systems may be supported. Controller Programming allows you to update and reprogram various vehicle controllers based on part numbers and/or new available calibration files. You can program the following types of controllers by selecting Controller Programming from the TOC
G-IDSS functions are:
• Service Infomration;
• Diagnostics (Engine, Transmission, Chasis, Body);
• Controller Programming
Support models：
ISUZU_G-MC: 1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L
Heavy-duty ISUZU 6HK1 Engine 6WG1 6WF1.
Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine
E-IDSS introduction：
Version: 2025
Language: Chinese, English, Japanese
OS: Win7/10 32bit/64bit
E-IDSS exclusive software for Isuzu Industrial engines,Can Not use in truck and bus engine.if you want diagnostic truck, bus and pickup, you buy G-IDSS 2025 Is OK.
The function is similar to G-IDSS, it can test the diagnosis of ISUZU engine sensor, adblue and DPF. But unable to test Bosch and Delphi systems Isuzu. Only test Denso Isuzu, Denso Kato, Kobelco Kobelco, Sumitomo Denso Hitachi ECU/ECM.
Support models:
DENYO
2005-2015 (4JJ1 Tier-4, 4HK1 Tier-4, 6WG1 Tier-4, 4LE2 Tier-4, 6WG1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Doosan
2005-2010 (6WG1 Tier-3, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4)
Hidromek
2005-2012 (4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Hitachi
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 6UZ1 GB3, 6WG1 GB3, 4JJ1 GB3, 4HK1 tier-4, 6HK1 tier-4, 6UZ1 tier-4, 6WG1 tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4, 4JJ Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Hokuetsu
2005-2014 (4LE2 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
HSC
2005-2010 (6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IH I
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
ISEKI
2006-2012 (4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Isuz u PT-China
200 5-2015 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Isuzu America
2005-2013 (4JJ1 Tier-4, 4LE1 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3 Tier-4,
4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IWAFUJI
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
JCB H P
2005-2010 (6HK1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
KATO
2006-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3)
KCM
2005-2014 (6WG1 Tier-4, 6WG1 INT-Tier-4, 4HK1 Tier-3)
KG Flowtech no
2005 (4HK1 Tier-3)
Kobelko
2013 (4LE2 Tier-4)
Madill
2005 (6HK1 Tier-3)
Maeda Seisakusho
2013 (4LE2 Tier-4)
Morooka
2010 (4HK1 INT-Tier-4)
NH Kobelco
2005 (6HK1 Tier-3)
Nihon Josetsu
2005-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Nihon Sharyou
2005-2006 (4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Sakai
2005-2012 (4JJ1 INT-Tier-4, 4JJ1 tier-3, 4HK1 Tier-3)
Sanward
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
Sany
2005-2014 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Shinko Engineering
2005 (4HK1 Tier-3, 6HK1 Tier-3)
Sumitomo
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 4HK1 Tier-4, 4JJ1 GB3, 6HK1 Tier-4, 4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Ta keuchi
2 006-2013 (4JJ1 Tier-4, 4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Unicarrie rs
2005-201 0 (4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3)
Uota ni
200 5 (4HK1 Tier 3)
Yamabiko
2005 (4HK1 Tier-3, 6HK1 Tier-3)

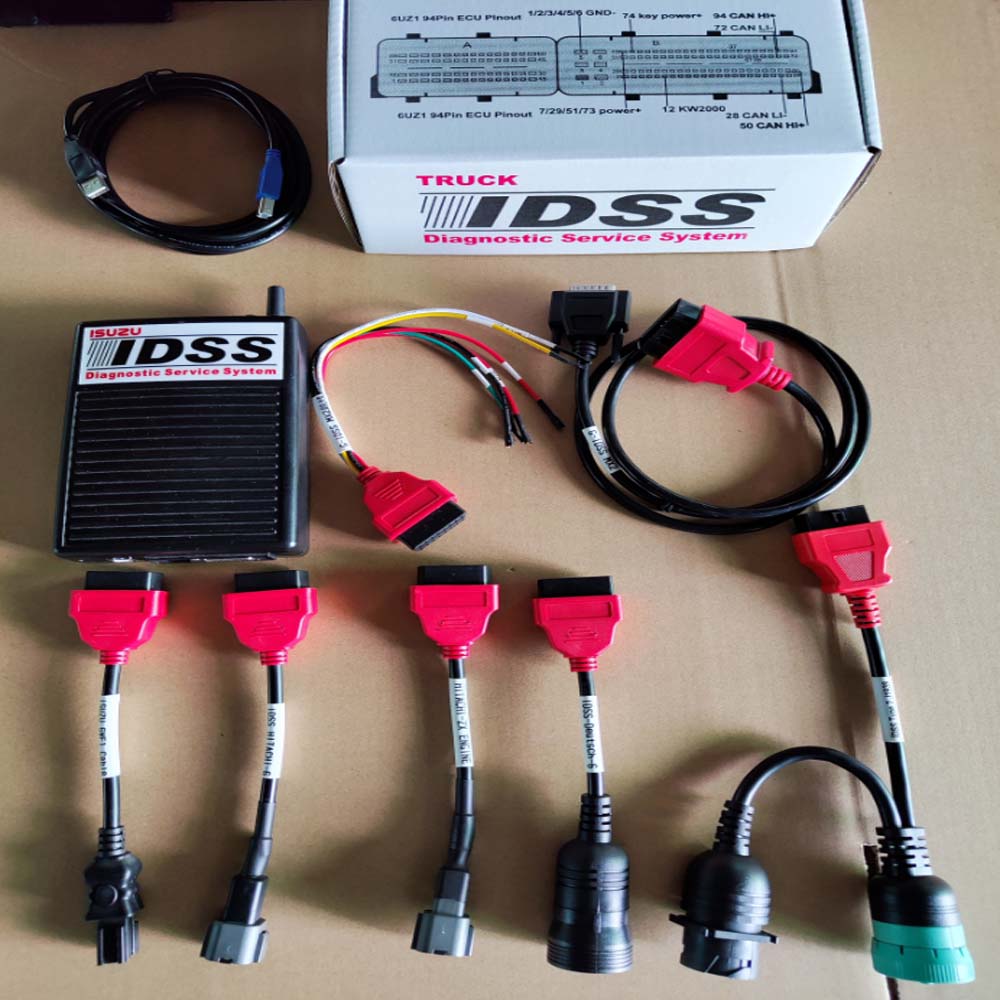

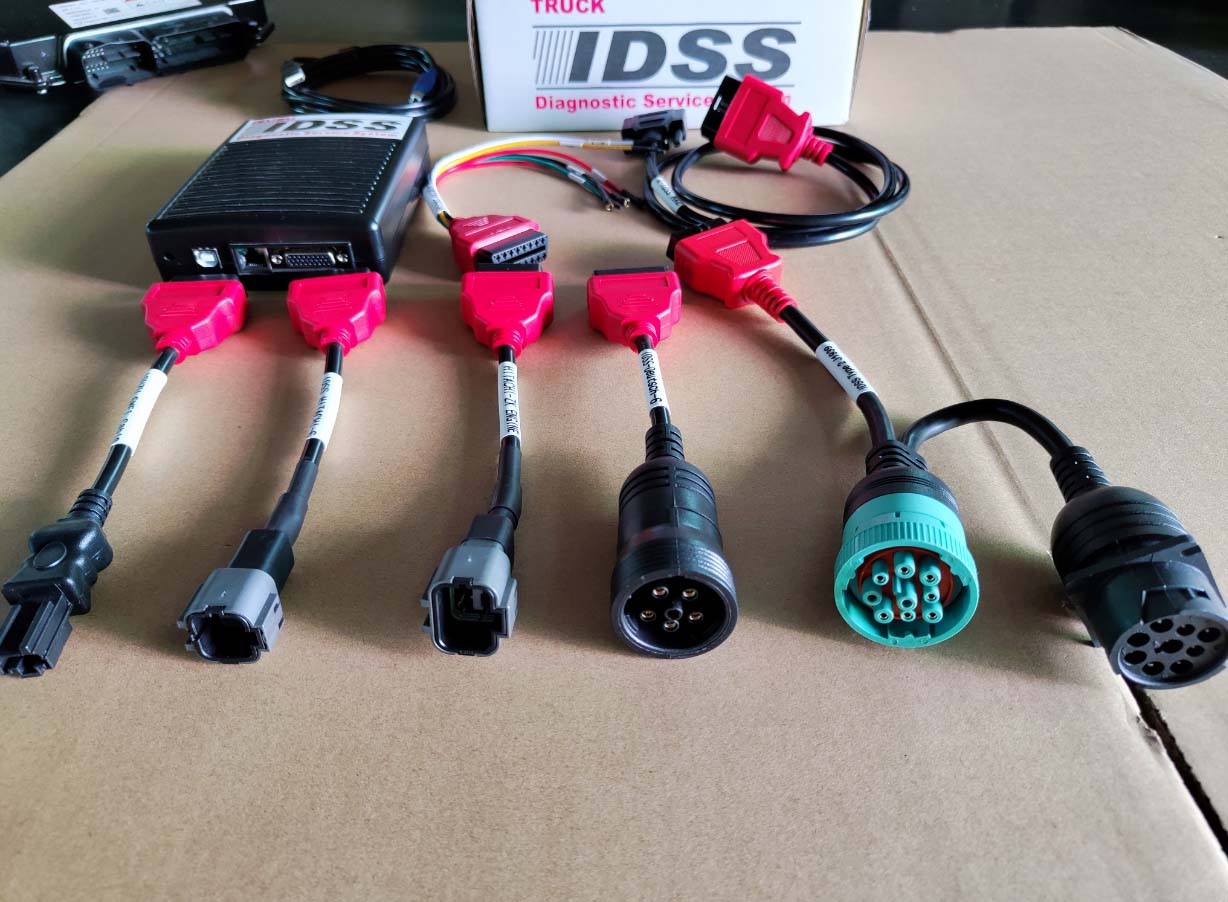

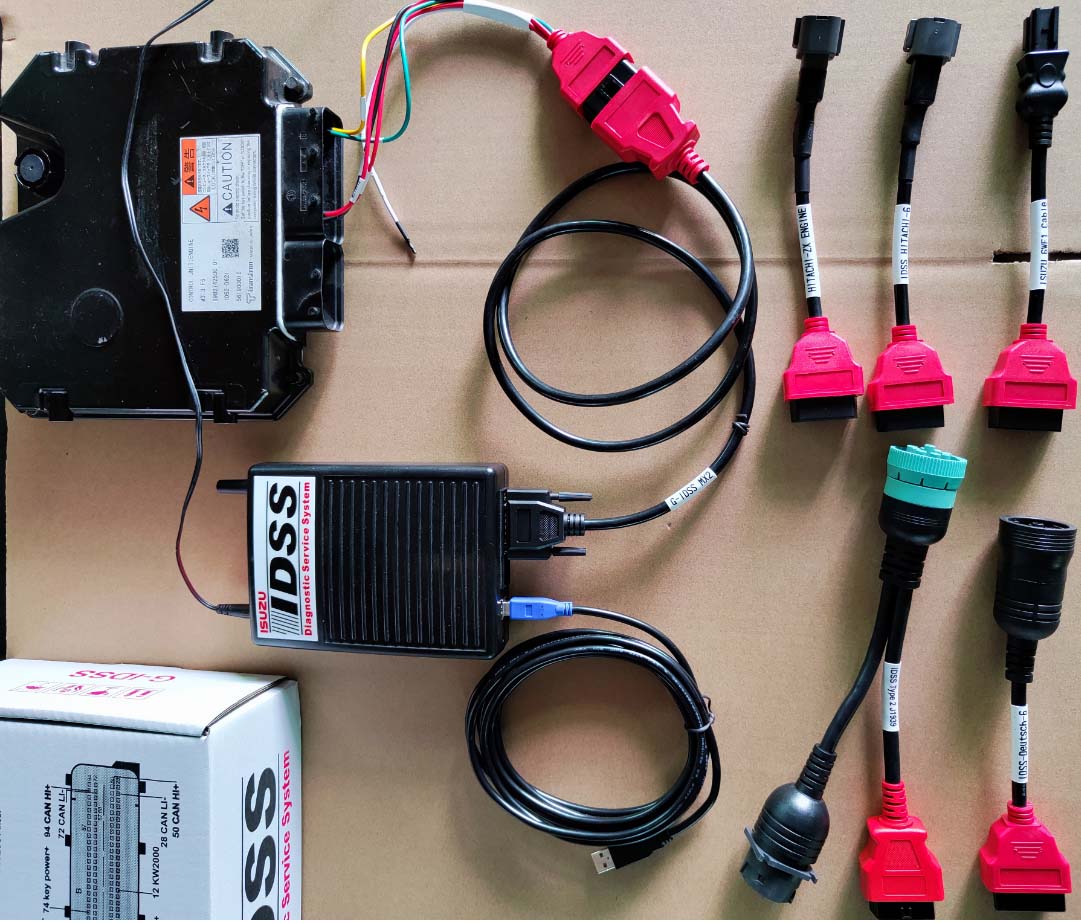

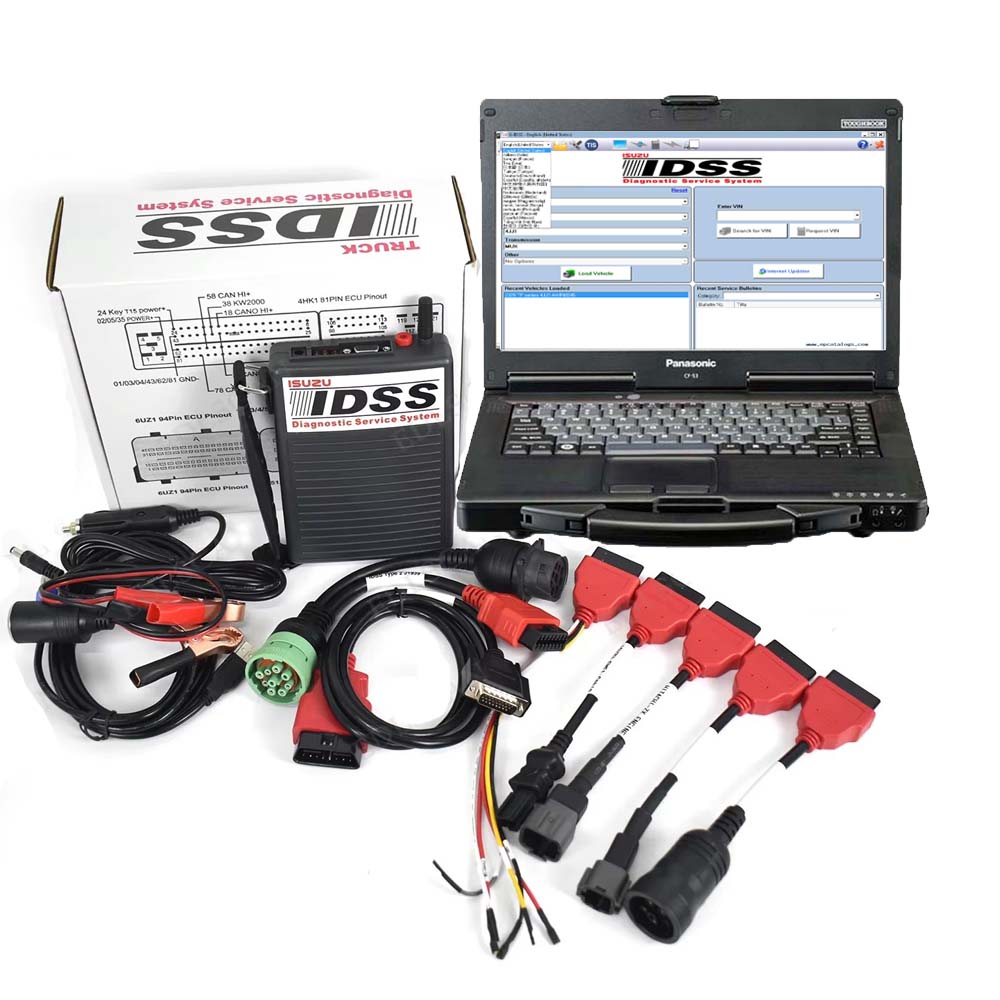

Package:

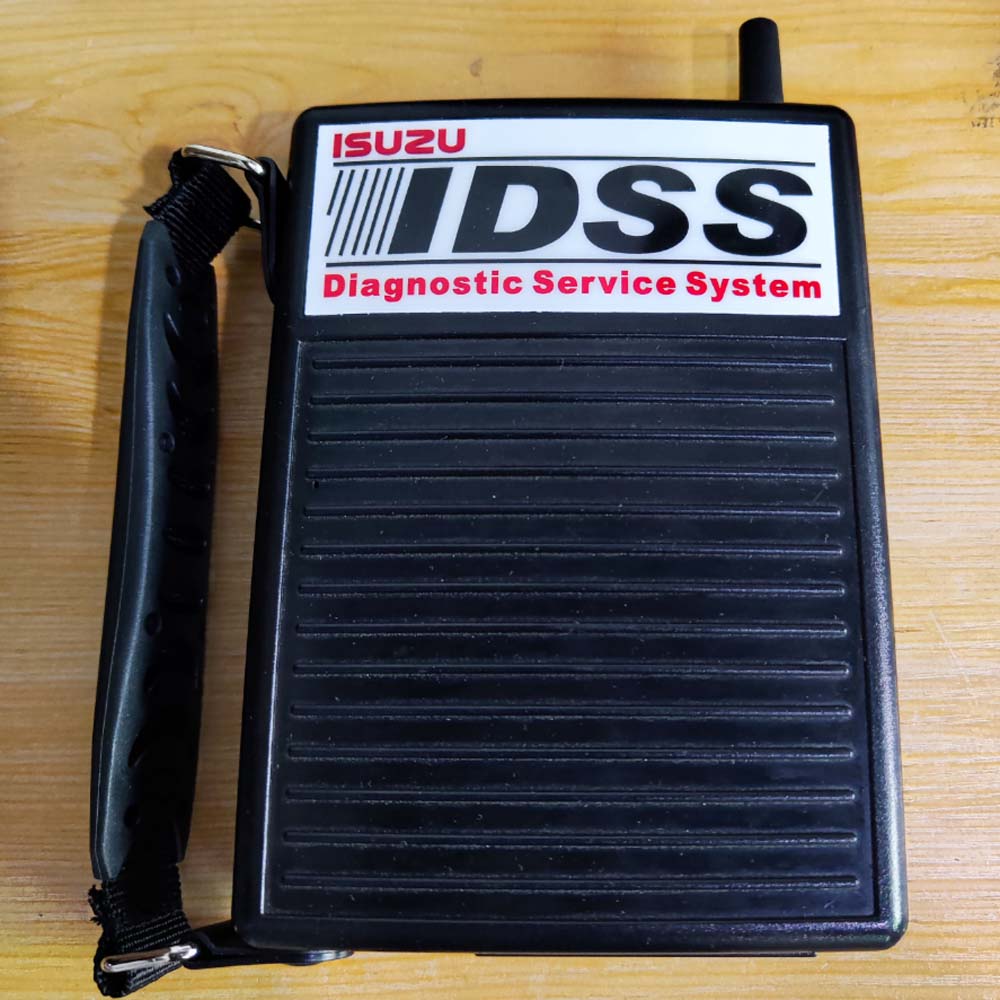

1pc * IDSS USB-Link adapter
1pc * USB cable
1pc * 9-pin cable
1pc * G-IDSS OBD2 cable
1pc * Mx2 jumper cable
1pc * J1939 Cable
1pc * CANBUS 3P cable
1pc * CANBUS 6P Cable
1pc * CANBUS 10P Cable
1pc * Second Hand Panasonic CF53 Laptop With latest Softwae（optional)

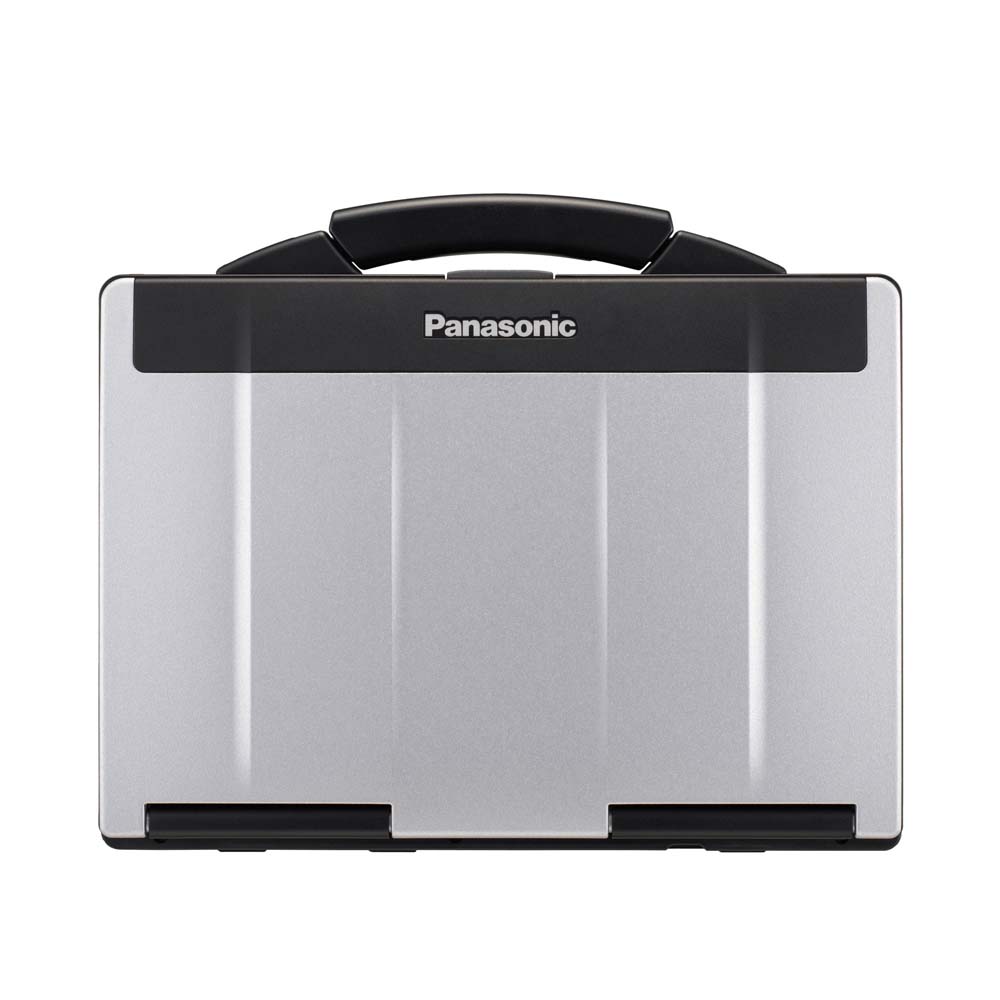

Second Hand Panasonic CF53 I5 8GB Laptop Specification:
Model No: CF-53
Processor Type: Intel(R) Core(TM)I5 CPU i5-3320
Memory Size: 8G
Condition: Used
Please feel free to contact us ,If you have any question: Email: Sales@obdii.shop Whatsapp: +8613428908617  Shipping Terms: Shipping Time: Return Policies: Contact Us: Attention: PLZ leave your telephone number and address in detail when you take order in our website, it is very important to ship your order. (Customers from Brazil PLZ leave your Cutsom ID also, thanks!) |
