Original Volvo VOCOM 2 Tech Tool 88894200 Truck Excavator Diagnostic Tool Heavy Duty Scanner

Original Volvo VOCOM 2 Tech Tool 88894200 Truck Excavator Diagnostic Tool Heavy Duty Scanner

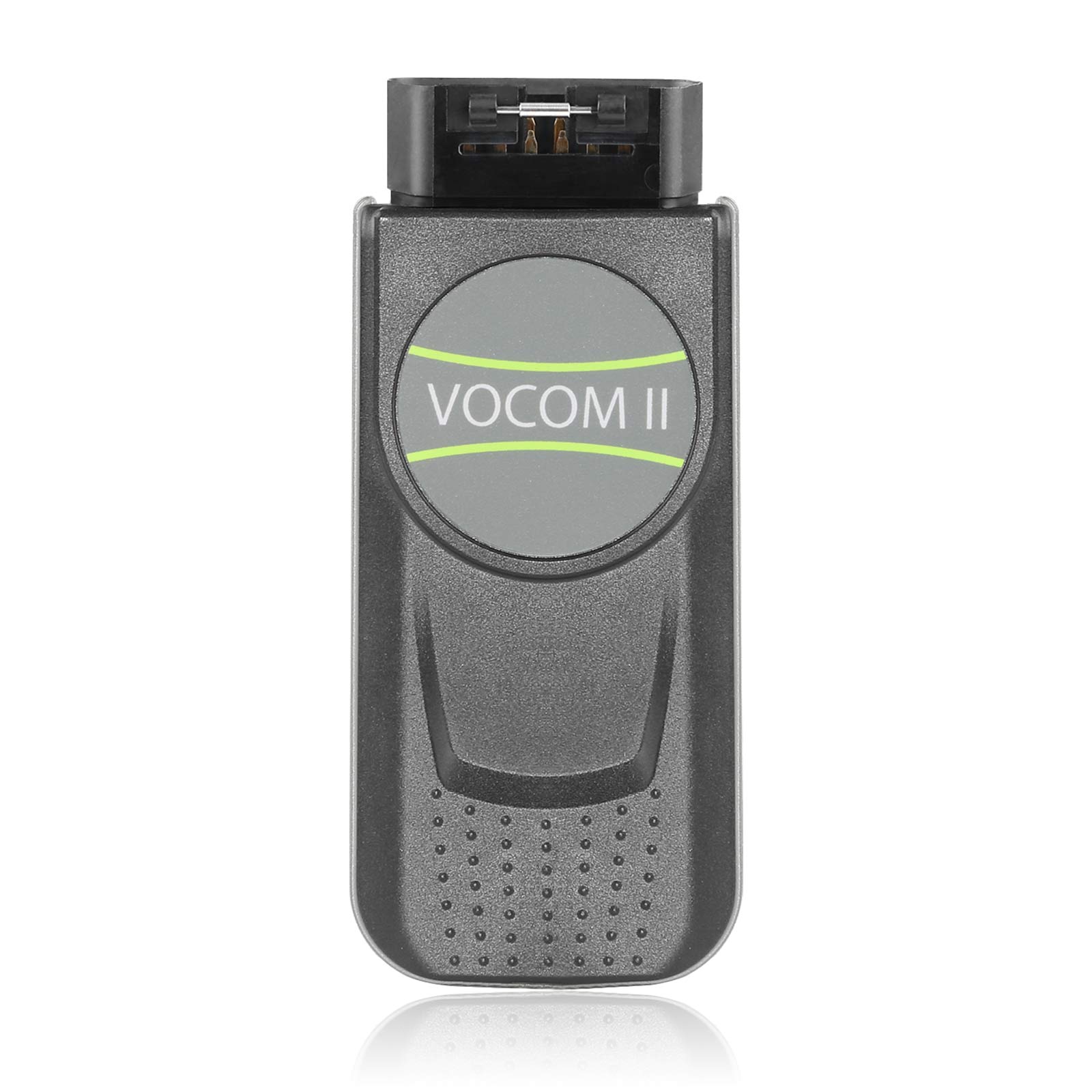

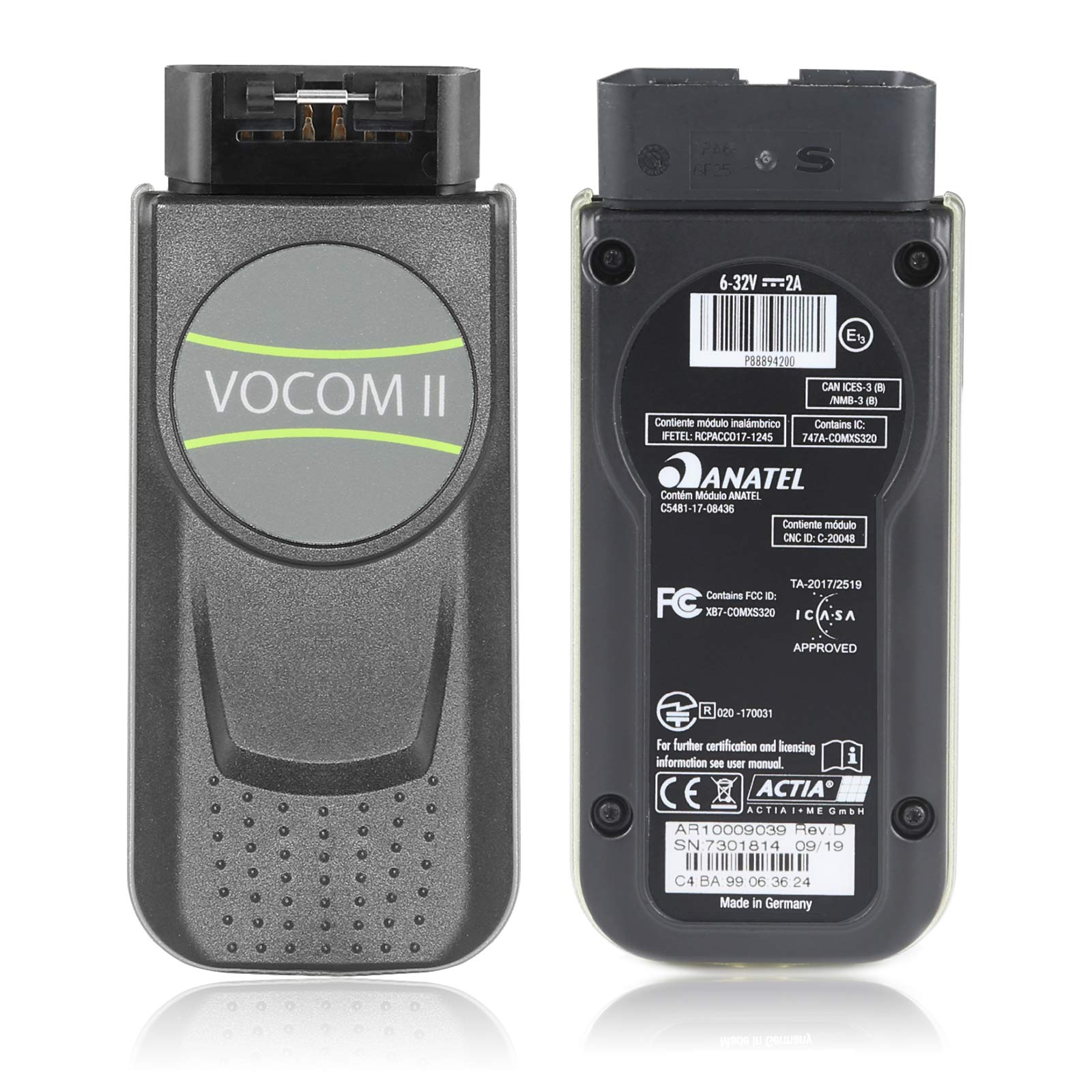

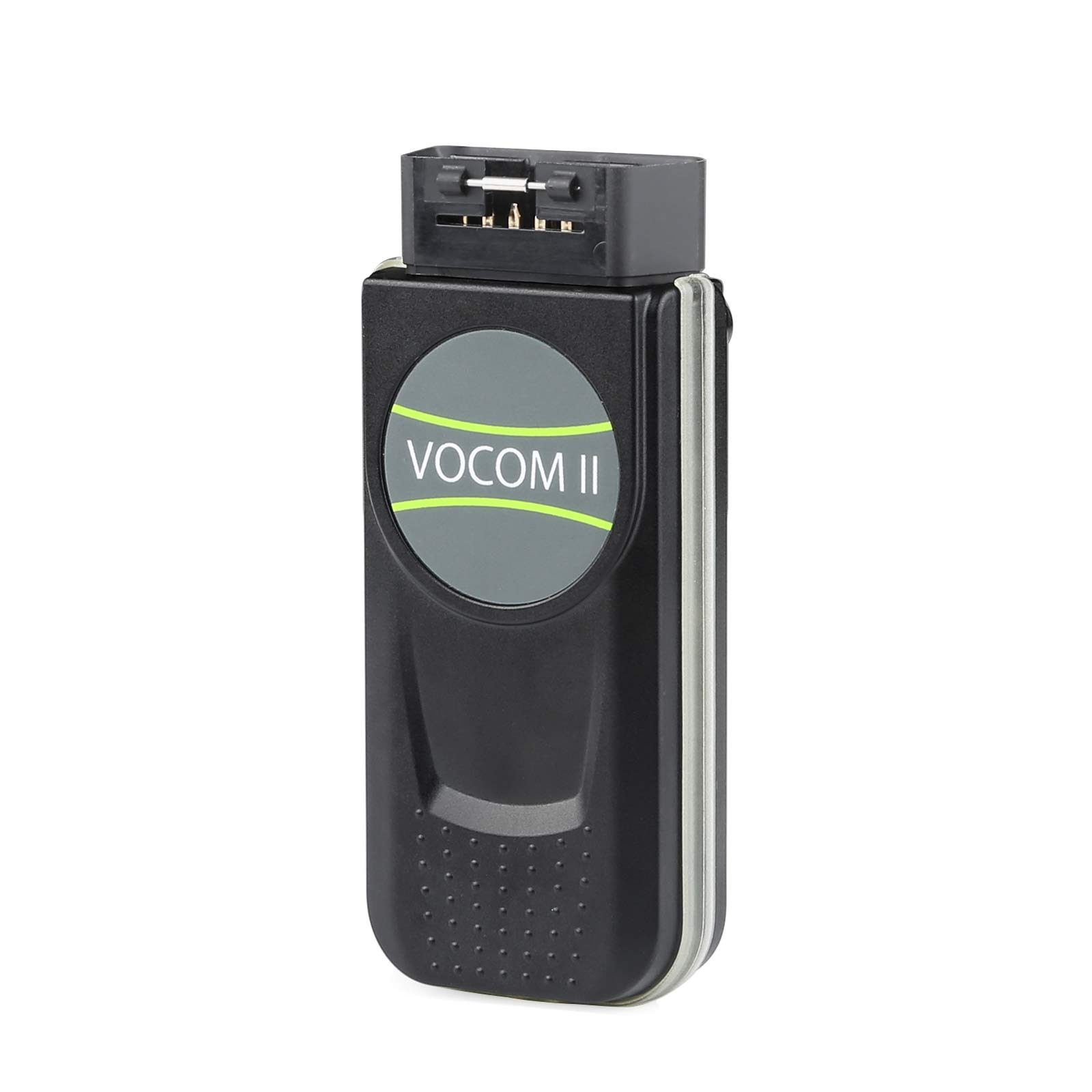

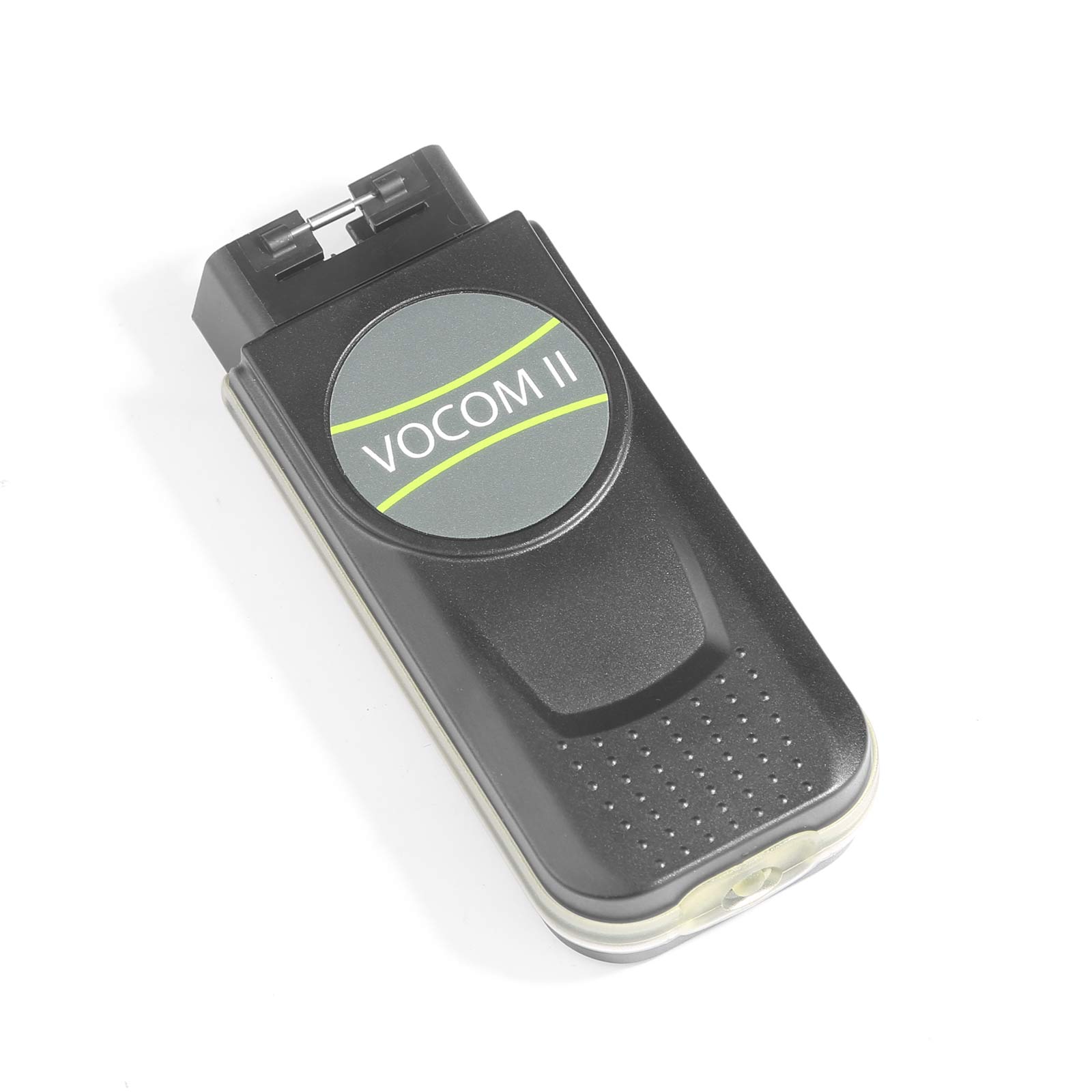

This VOCOMII is dealer shop tool which produced in Germany. It covers all the functions of the VOCOM2 VOCOMII 88890400, which doesn’t need any cables accessories and can be connect to the laptop via WIFI perfectly.

Volvo Vocom II Genuine Adapter Description:
1. Original VOCOM II Mini 88894200 WiFi Volvo truck diagnostic tool, made in German
2. Support OBD2, 9-Pin, 6-Pin, FCI, MEFI, BNA, OBD2, 9-Pin, work on Volvo/Renault UD/Mack trucks from year 2002
3. Vehicle communication protocols: ISO 11898, ISO 15765-2, SAE J1939, SAE J1708
4. Support Volvo/Renault UD/Mack trucks made since year 2002
5. Connect laptop by WiFi , no need cables

Tech Tool (TT) is a tool that supports the repair and diagnostic process. It was developed to make repair shop tasks easier and more efficient. TT can be used in the repair shop, out in the field, at the roadside, or during test drives. TT is a diagnostics application that covers the whole repair process through the use of plug-ins. With TT you can diagnose, test, calibrate, and program a product. A product could be a vehicle, engine, or a machine. TT also provide functions for updating the tool, communication with the product, and other external applications. The set of plug-ins, user authorizations, and available languages is adjustable to provide every user with what they need.

The truck models supports:
For Volvo Trucks - Older electrical system, Vehicle electrical system '98; VERSION2, VERSION3; VERSION4 - FH4/FM4
For Volvo Buses - Conventional, Multiplexed, Multiplexed v2, Multiplexed v3
For Volvo Construction Equipment
For Volvo Penta, Marine engines - VERSION2, VERSION3
For Volvo OEM Component Customer - VERSION2, VERSION3
For Mack Trucks - V-MAC I/II/III, ITC, IV, IV+
For Renault Trucks - VERSION2, VERSION3, VERSION4; (EURO 6, DXI, DTI)
For UD Trucks - VERSION2, VERSION3

88894200 Vocom 2 Interface Functions:
Identify a product.
View information history.
Diagnose a selected product.
Test a selected product.
Program a selected product.
Calibrate a selected product.

Premium Tech Tool vocom developer tool
1. Dealer tool to access and program parameters in Level2 and Level3 without connecting to central severs;
2. Works with Tech Tool (VCADs Pro), Normal or Development mode, support 28 languages;
3. Support all brands and models supported by Tech Tool (VCADs Pro 3.06);
4. Make programmable more than 11000 parameters.
5. Program speed limit, change chassis ID, disable immobilizer;
6. Change minimum/maximum values of parameters, for example: increase speed limit;

Premium Tech Tool (PTT) is an application for the Aftermarket, developed to support efficient service and diagnostics. Premium Tech Tool is available as a connected version or as an unconnected version. The unconnected version is called  Premium Tech Tool Connectionless (PTTC) and that is that we offer. PTTC is used in workshops that do not have internet access, but both versions are referred to as PTT. PTT provides access to the Guided Diagnostics and VCADS.

Vocom Communication Unit is designed with focus on robustness and durability to withstand the tough workshop environment.

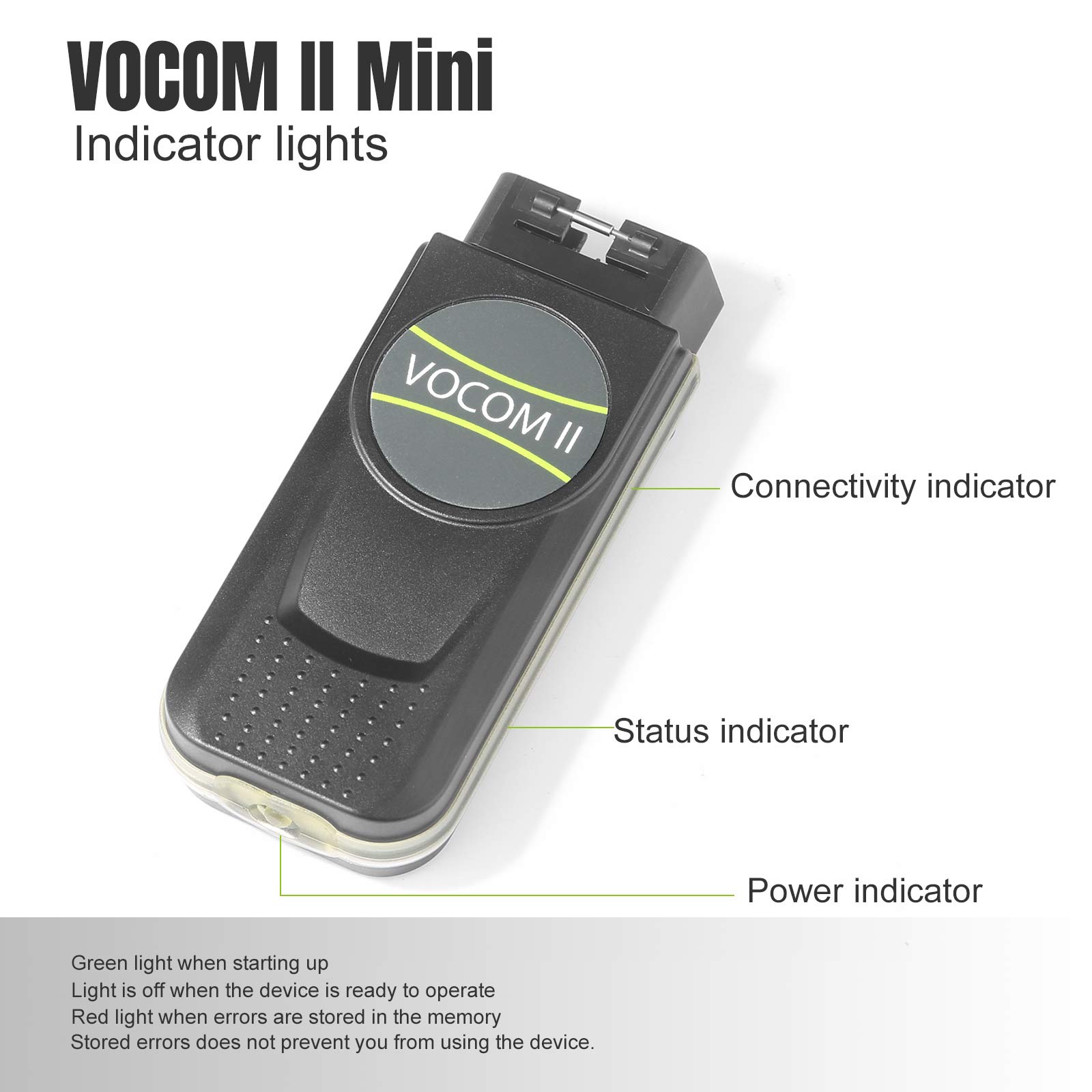

·Improved LED indicators
·Improved quality of cables
·Military standard on connectors
·Better liquid and dust ingress protectors
·Metal casing and rubber bumbers for better robustness
Vocom Key Facts Parts no. for Vocom Cables
Temperature Range: -40° - +85° (Wian -20°- +65°) Protection Class: IP55
Shock Resistance: 2m
RoHS Conformance: Yes
Wlan: 802.11 b/g

Support List:
For Volvo Trucks :
AC  Compo4  F10  F12  F16  FE FH FH12 FH16 FH565 FL FL10 FL12  FL6 FL7 FM FM10 FM12 FM9 FM7 Nh12 NH525 NH565 NL10 Nl12 VAh VHD Vm VN VT WC WG WI WX

For busses:
B10B  B10L B10M B10R B11R B12 B12B B12M B12R B13R B58 B5LH B5RH B6 B6R  B7FB B7L B7R B9L B9R B9S B9TL BXRC COMP12

PREVH PREVX OLYMPIAN SUPEROLY

construction Equipment
Wheel Loader:
L110E  L110F L110G L120E L120F L120G L150E L150F L150G L180E L180F L180G L220E L220F L220G  L250G L330E L350F L45F-TP L45F-TPS L50F-TP L50F-TPS L50G-TP L50G-TPS L60E L60F L60G L70E L70F L70G L90E L90F L90G

Aryiculated Hauler :
A25D A25E A25F A30D A30E A30F A35D A35E A35F A40D A40E  A40F T450D

Excavator:
EC135B EC140B EC140C EC140D EC160B EC160C EC160D EC180B EC180C EC180D EC200B EC210B EC210C EC235D EC240B EC240C  EC250D EC290B EC290C EC300D EC330B EC330C EC340D EC360B  EC360C EC380D EC460B EC460C EC480D EC700B EC700C  ECR145C ECR235C ECR235D ECR305C EW140B EW140C EW140D EW145B EW160B EW160C EW160D EW180B EW180C EW180D  EW200B EW210C EW210D EW230C FB2800C FBR2800C FC2121C FC2421C FC2924C FC3329C PL3005D PL4608 PL4808D PL7015

Grader:
G710B G720B G726B G730B G740B G746B G780B G930 G930B G940 G940B G946 G946B G960 G960B G970 G976 G990

Skidsteer Loader :
MC110B MC60B MC70B MC80B MC90B

Compact Excavator:
EC55C EC80D ECR88 EW60C

Paver :
ABG7820B ABG8820B P7820C L882C

Other:
CARETRAC

Volvo Vocom II Genuine Adapter Includes:
Package 1:
1pc x VOCOM II Mini dongle

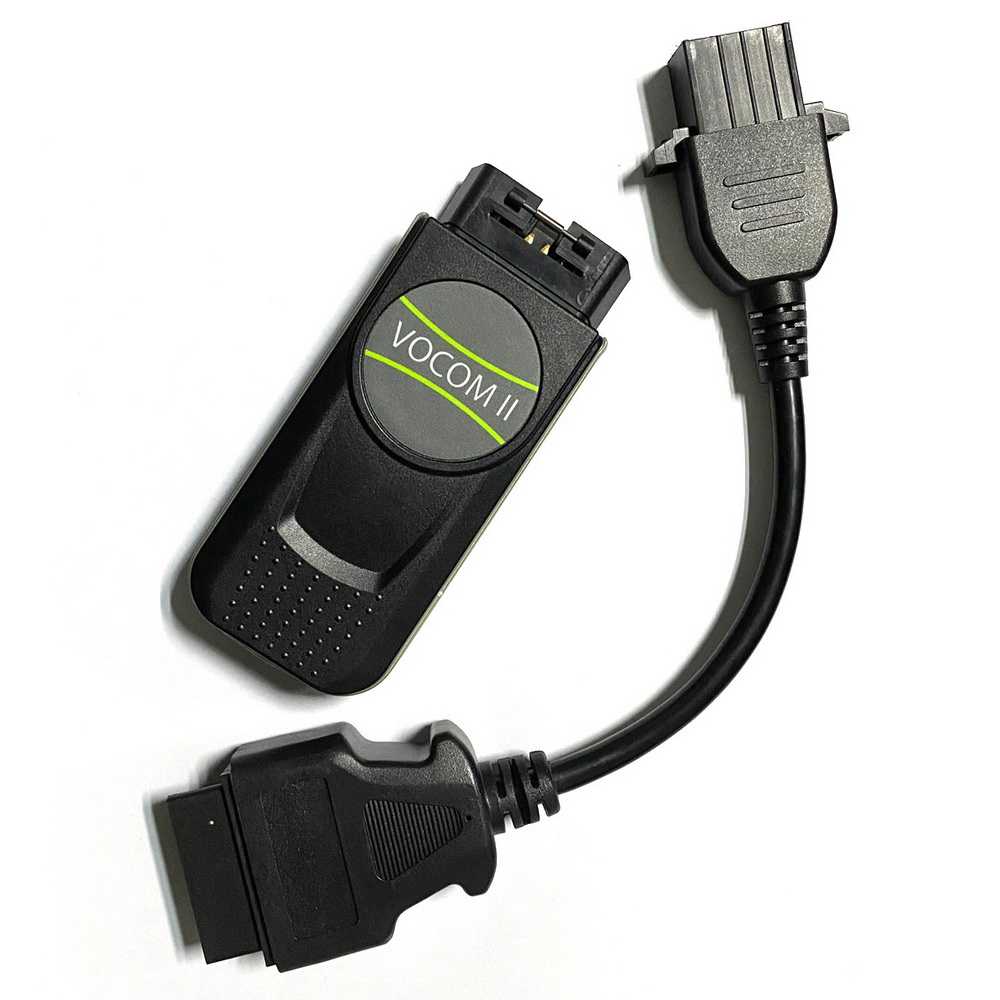

1pc x 8pin OBD2 cable

Package 2:
1pc x VOCOM II Mini dongle
1pc x 8pin OBD2 cable
1pc x 256G SSD  (PTT 2.7.116 Software)

Package 3:
1pc x VOCOM II Mini dongle
1pc x 8pin OBD2 cable
1pc x Second Hand Lenovo T450 8G Laptop（With PTT 2.7.116 Software）

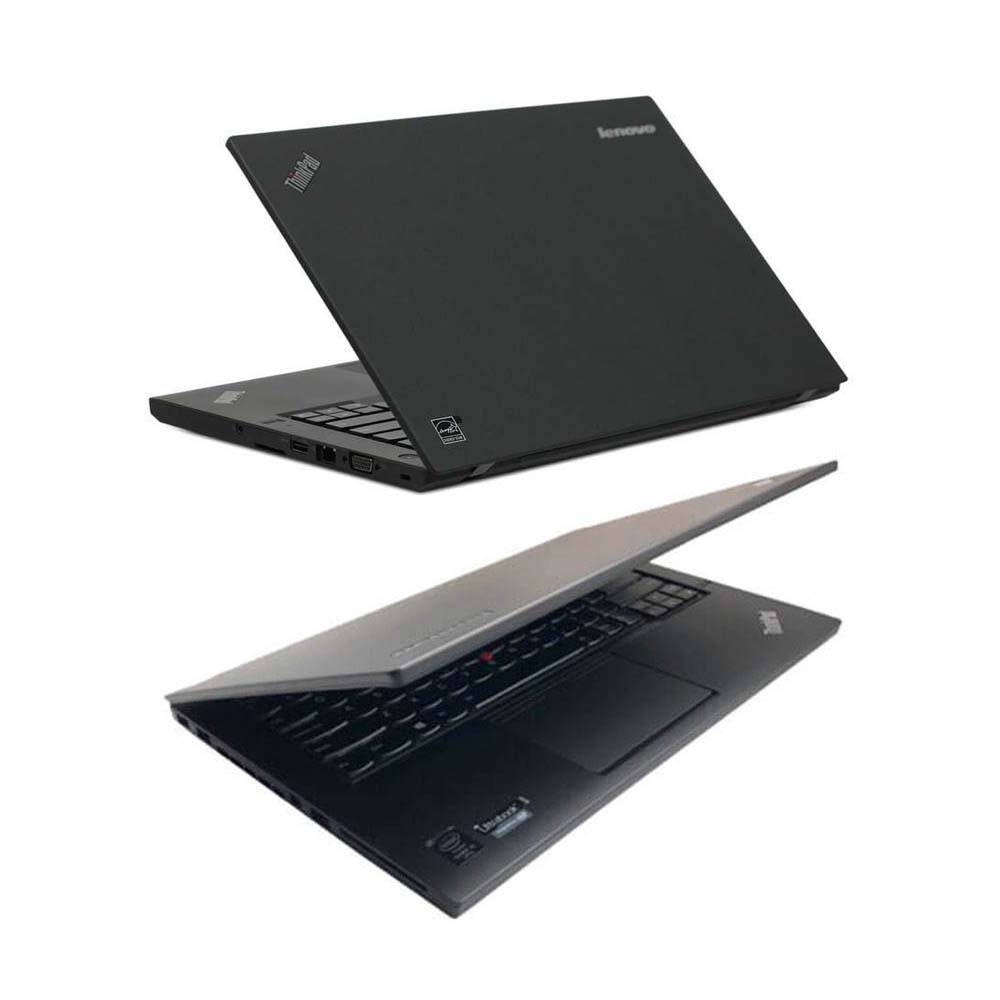

Second Hand Laptop Lenovo T450 Laptop Specification：
Type:  Laptop/Notebook Memory: 8GB
Compared with other laptop, this one is better quality and run faster.
Brand: Lenovo
Model: Lenovo T450
CPU Type: Intel(R) Core (TM) i5-5200U CPU
Installed memory: 8G
Second hand used
